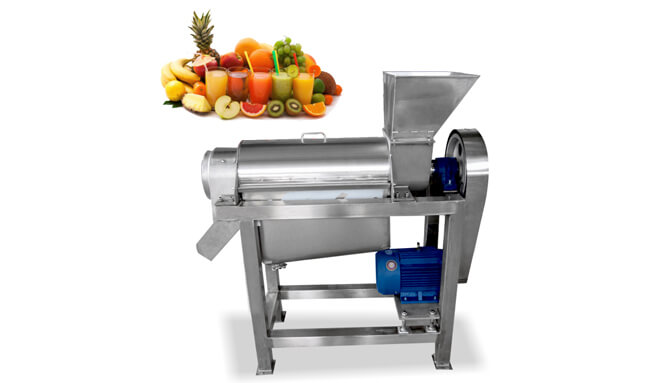

The screw type juice extractor is suitable for the extraction of juice from various fruits. This juice extractor is widely used for commercial juice processing. It is easy to operate and has high efficiency. The capacity can be customized by your demands.

How does the screw type juice extractor work?

First the fruits enter the screw type juice extractor through the feed hopper. The bottom diameter of the juice extractor gradually increases, and the pitch decreases gradually. The direction of rotation of the screw is counterclockwise. Then when the fruit is pushed by the screw, the volume of the screw cavity is reduced, forming a squeeze of the fruits. The squeezed juice flows into the bottom of the juicer, and the solids are discharged through the gaps in the body.

How to get higher purity juice?

Adjusting the pressure of the hydraulic system can adjust the slag discharge resistance, thereby changing the juice yield. However, if the pressure of the hydraulic system is too high, part of the slag particles will be squeezed out and filtered together with the juice under strong squeezing.

Although the discharged juice increases, the quality of the juice decreases relatively. So in order to achieve a better juice extraction effect, the pressure of the hydraulic system should be determined according to your specific process requirements. You can contact us whatsapp +86 187 4943 2495, then our project manager will provide you with the most suitable screw type juice extractor according to your needs.

Application:

Cabbage/Green cabbage/Celery/Radish/Beet, Potato/Onion and other vegetable juicers;

Apples/Grapes/Pears/Pineapples/Papaya/Mulberries/Carambola, and other fruits juicer.

Advantages of screw type juice extractor:

1. Health and safe: The material of juice extractor is stainless which can ensure food safety.

2. Wide range of uses: the screw type juice extractor is suitable for apples, grapes, pears, pineapples, papaya, mulberries, and other fruits juicer.

3. High efficiency: the efficiency of juice extractor is over 85%.

4. Automation: This machine can crush fruits, squeeze juice and discharge slag automatically.

5. Small volume and weight.

6. Low energy consumption and the raw material is not blocked.

Installation and maintenance of screw type juice extractor:

1. The juice extractor should be installed horizontally, and fixed by ground screws.

2. The raw materials should be fed uniformly, and hard foreign objects are strictly prohibited in the feeding hopper to avoid damage to the filter screen.

3. Maintenance: When process fruits with much fiber, filter screen should be cleaned in time.
